432/446MHz
IF radio
TS-930 (SSB/CW), converted GE mobile (FM)
Transverter
Home brew (SSB/CW), tower mounted RX, truck mounted TX
Amplifier
SSB: homebrew tube amp, 600W
FM: 100W mobile
Antennas
SSB: 4x27 element H, rear looking 9 element
FM: 2x19 element pair, omnidirectional
![[432 Mhz Array]](images/432_array.jpg)

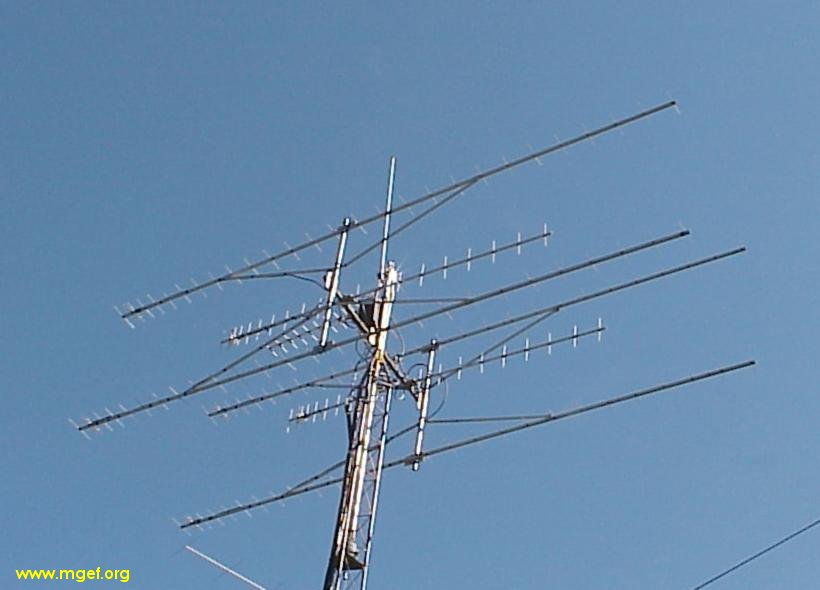

432 MHz antenna array, RX downconverter, antenna switch |
![[432 Mhz PA]](images/432_pa.jpg)

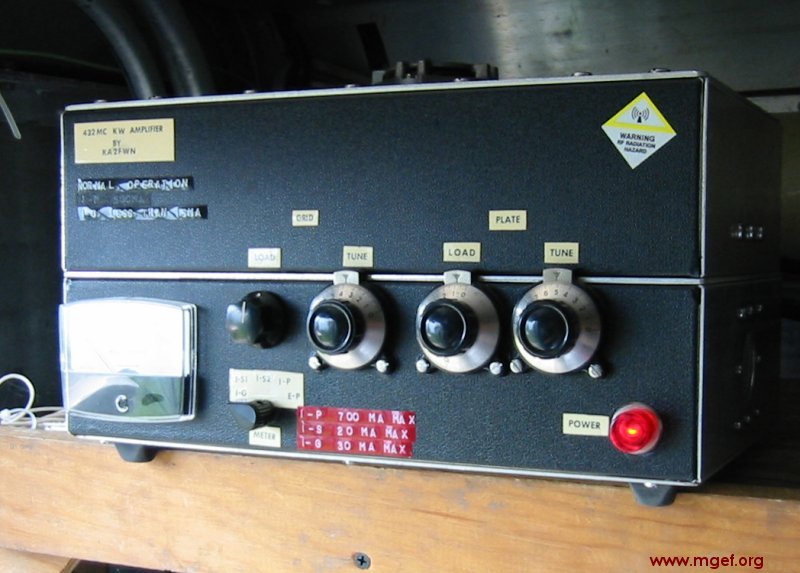

432 power amp |
