2/3/5 GHz main

IF Radio

TS-830

Transverter

homebrew tower mounted units

Amplifier

2G: homebrew, TWT, 25W

3G: homebrew, TWT, 20W

5G: homebrew, solid state, 10W

Antenna

6 foot dish w/ three feeds on a rotating tower

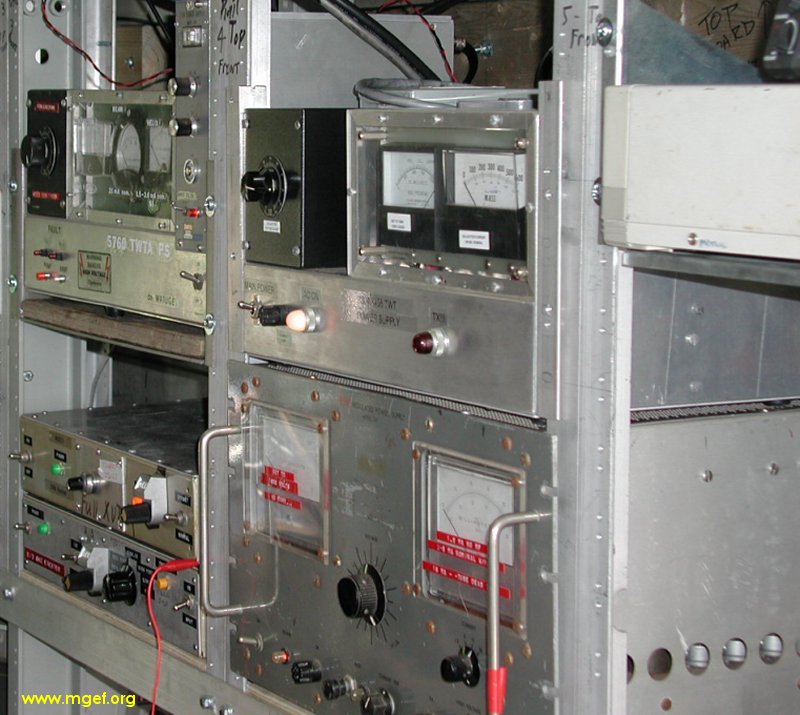

 [2/3/5 power supplies]

2 and 3GHz TWT High Voltage Power Supplies

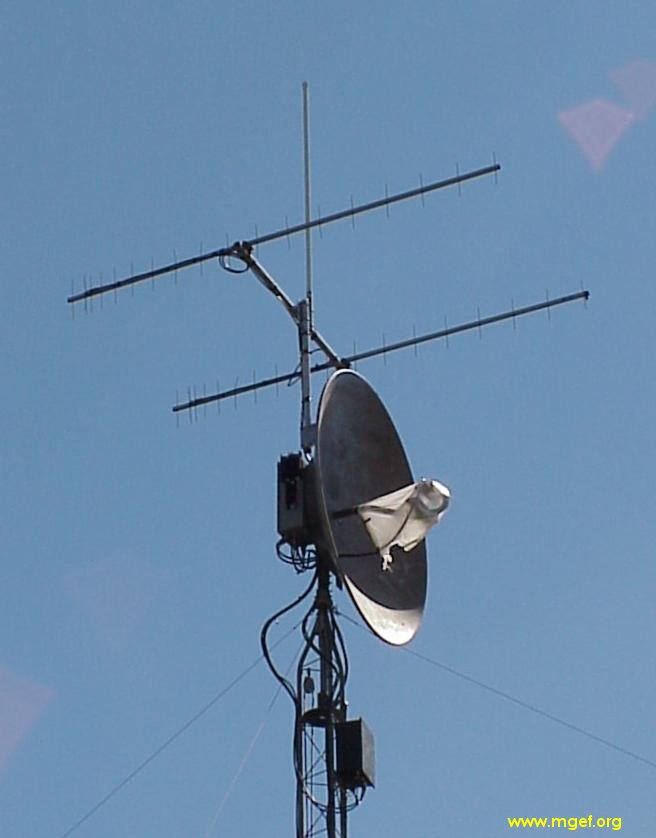

[2/3/5 main]

2/3/5GHz 6' dish, tower mounted transverters, power amps

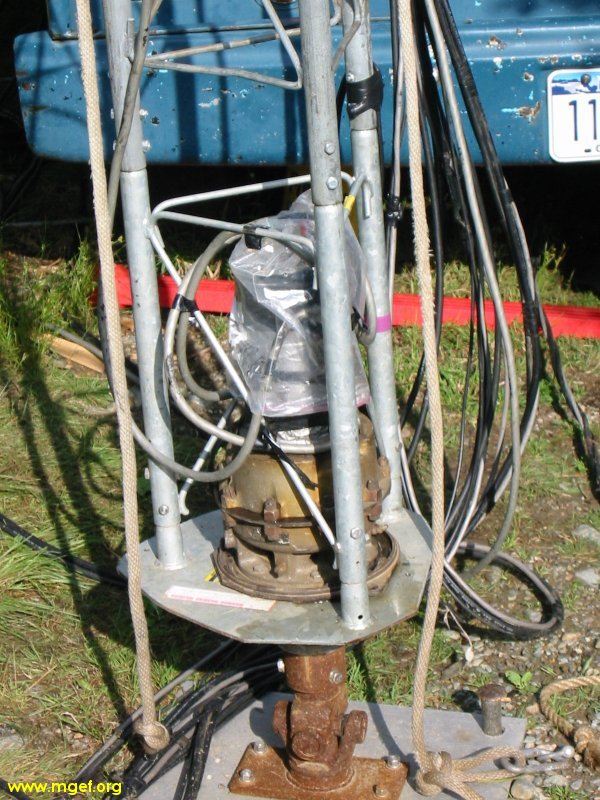

[2/3/5 rotor]

2/3/5GHz prop-pitch based tower rotor

2/3/5 GHz auxiliary

IF Radio

IC-290

Transverter

homebrew/modified DEM tower mounted units

Amplifier

2G: homebrew, solid state, 40W

3G: homebrew, solid state, 6W

5G: homebrew, solid state, 10W

Antenna

6 foot dish w/ three feeds

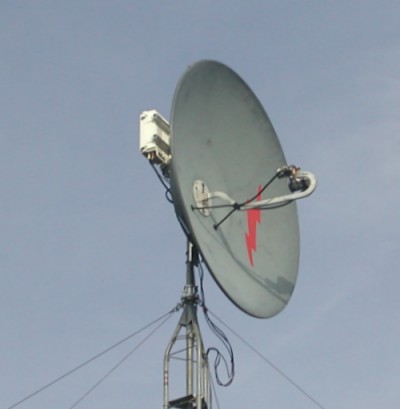

 [2/3/5 aux]

2/3/5GHz 6' dish, front view (feeds)

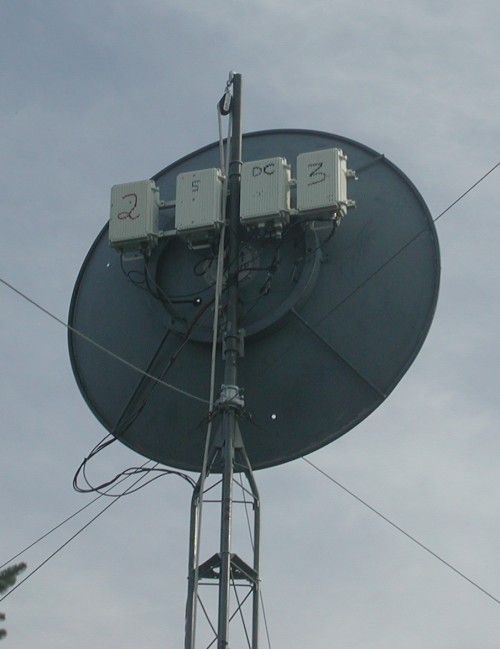

[2/3/5 aux]

2/3/5GHz 6' dish, transverters/power amps and DC distribution
