220MHz
IF radio
IC-756PRO (SSB/CW), IC-xxx (FM)
Transverter
home brew (SSB/CW), tower mounted down converter, truck mounted upconverter
Amplifier
SSB/CW: homebrew 8877, 1.5kW
FM: 200W brick
Antennas
4x16 element H (SSB) and 2x12 (FM)
![[220 MHz TX upcoverter]](images/220_upcon.jpg)

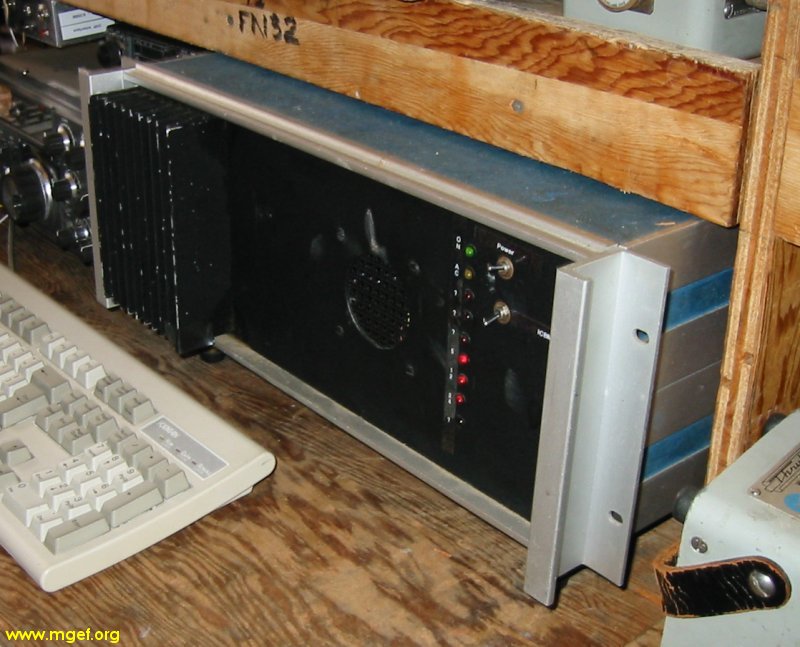

TX upconveter ![[220 power amp]](images/220_pa.jpg)

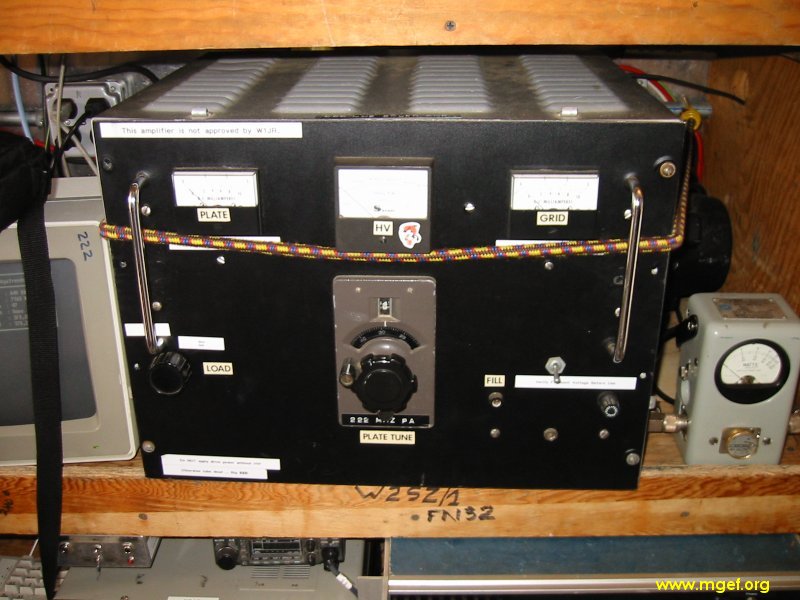

220MHz power amp |
![[220 Mhz Array]](images/220_array.jpg)

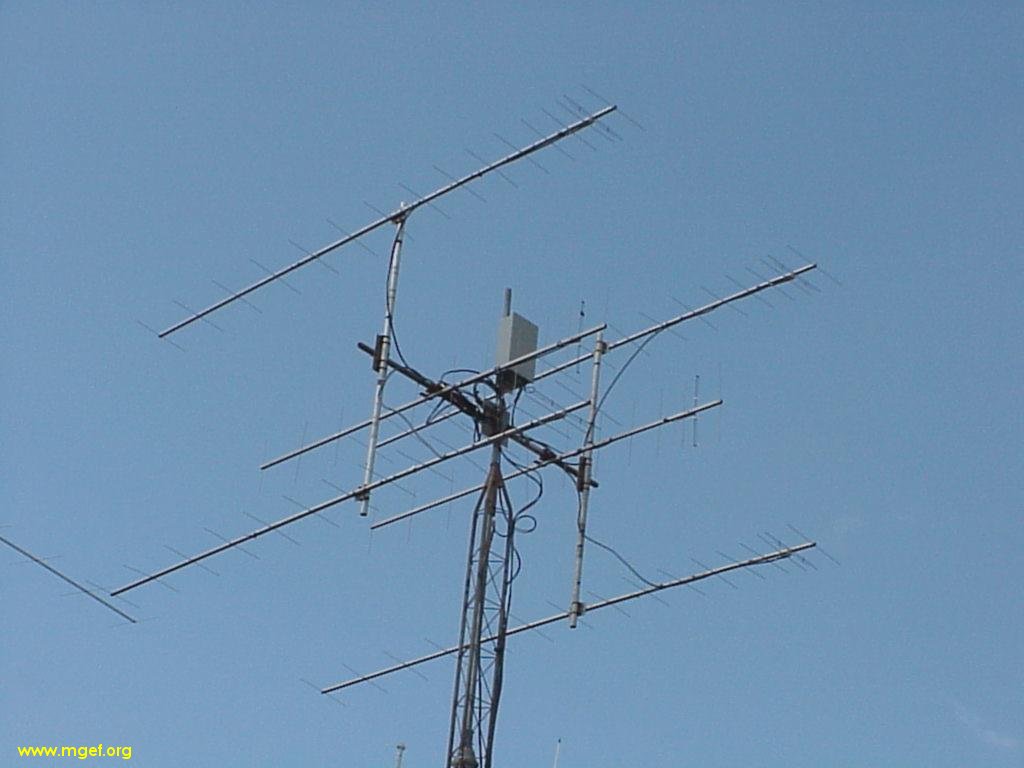

220MHz antenna array and RX downconverter ![[220 Mhz HV PS]](images/222hv.jpg)

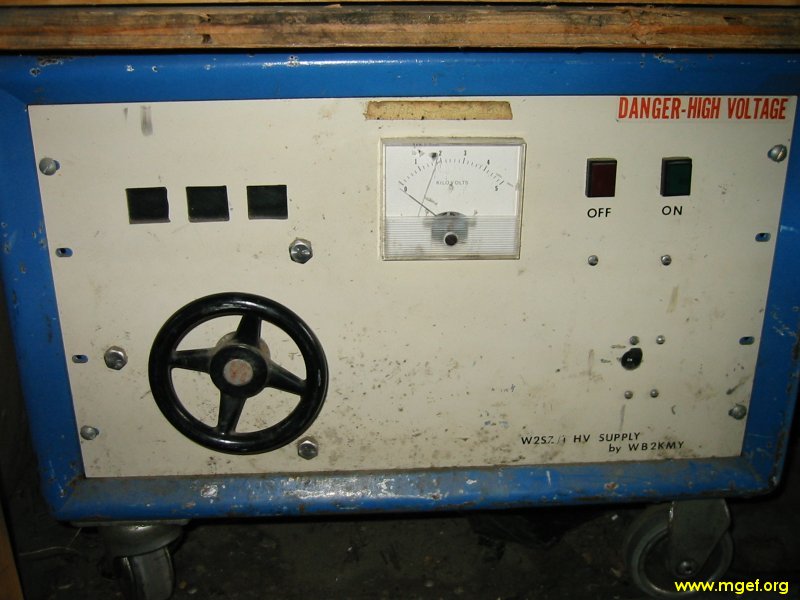

220MHz high voltage PS |
